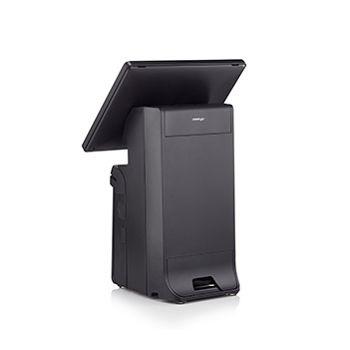

POSIFLEX HS-2510 2D AiO Tch Term 4G/128G SSD/MSR/POSR7 64b

POSIFLEX HS-2510 2D AiO Tch Term 4G/128G SSD/MSR/POSR7 64b

HS2510 with build in 2D Scanner, no Printer
9.7" mini AIO fanfree PCAP touch terminal, Intel Bay Trail Qual Core up to 2.42G, 2M cache, 4GB DDR3L, 128GB SSD, Built in 2D Scanner, POSReady 7 64 Bit Preloaded, 3 TR MSR

VENDOR SKU: HS2510AB6D2302FJ

General Features

• Fan free POS Terminal
• All-in-one design
• 9.7" LCD PCAP Touch Screen
• Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
• Small footprint
• Either build in 80mm Printer or Presentation scanner
• Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
• Several Customer Display Options available
• Comes with Bracket to lock down to bench for better stability



Specifications

CPU

Intel Bay Trail Qual Core up to 2.42G, 2M cache

Memory

DDR3L 1333 MHz, SO-DIMM socket x 1, max 8 GB, default 2 GB

Storage device(s)

In Australia standard with 32 GB SSD

Also Available with HDD or larger SSD on request

Display

9.7" LCD Display

Resolution

1024 x 768

Tilt Angle

17 ~ 45°

Touch Panel

True-Flat PCAP touch with 10 point multi-touch support

I/O Ports

3 x RS-232 interfaces; DB9 x2 & RJ-45 x1 with 5V or 12V support on COM1/COM2/COM3

4 x USB Ports: 1 x USB3.0/2.0 & 3 x USB2.01 x Parallel Port1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)1 x 10/100/1000 Ethernet Port1 x Mini-PCIe Slot

I/O Devices (Intergrated)

80 mm Thermal Printer, 200 mm/sec, with Auto Cutter or

Laser Omni Directional Presentation ScannerOptional:MSR 3 tracks ISO or JISII HID/VCOM SelectableSmartcard ReaderRFID Reader HID/VCOM SelectableFingerprint ReaderMini-PCIe Wifi Module

Audio

Line out Only

OS Support

POSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / WIN 10 IoT / Linux per request

Environmental Sealing

IP65 to front of screen

Operating Environment

SSD: 0 °C ~ 50 °C, 20% ~ 90% Relative Humidity

HDD: 0 °C ~ 40 °C, 20% ~ 90% Relative Humidity

Storage Environment

-20 °C ~ 70 °C, 10% ~ 90% Relative Humidity

Power Supply

External Power Adapter 12V, 100W

External Dimensions (WxDxH)

224.5mm x 185mm x 387mm

Weight

4.2 Kg

Warranty

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

• Power supply
• Interface and Power Cables
• Consumable products
• Options
• Software and Data Recovery

36 months

Downloads

Name	Size	Download
Brochure	446kb	hs2510w_2512w_brochure.pdf
